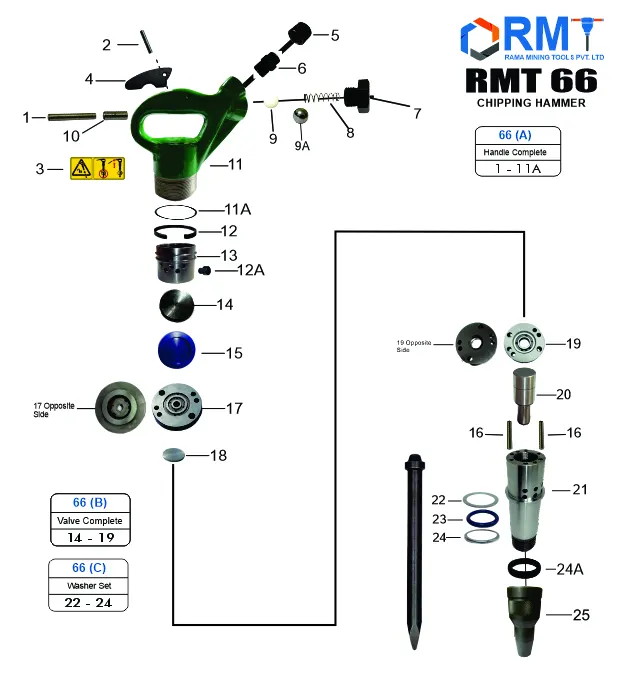

Spare Parts for RMT 66 - Chipper

RMT 66 - Chipper
RMT 66 - Chipper
Push Pin (Valve Pusher)
RMT Part #
66 01
Ref Part #
D6325-006060
Push Pin (Valve Pusher)
Throttle Lever Pin
RMT Part #
66 02
Ref Part #
-
Throttle Lever Pin
Warning Sticker
RMT Part #
66 03
Ref Part #
-
Warning Sticker
Throttle Lever
RMT Part #
66 04
Ref Part #
400033
Throttle Lever
Cap of Air Inlet 3/4"
RMT Part #
66 05
Ref Part #
013339
Cap of Air Inlet 3/4"
Air Inlet 3/4"
RMT Part #
66 06
Ref Part #
401035
Air Inlet 3/4"
Stop Plug 1/2"
RMT Part #
66 07
Ref Part #
410977
Stop Plug 1/2"
Push Spring of Ball
RMT Part #
66 08
Ref Part #
400008
Push Spring of Ball
Ball Admission (PU)
RMT Part #
66 09
Ref Part #
-
Ball Admission (PU)
Ball Admission (Metal)
RMT Part #
66 9A
Ref Part #
000007
Ball Admission (Metal)
Guide Bushing
RMT Part #
66 10
Ref Part #
405530
Guide Bushing
Handle (Bare)
RMT Part #
66 11
Ref Part #
490001
Handle (Bare)
Rubber seal of Handle
RMT Part #
66 11A
Ref Part #
400343
Rubber seal of Handle
Deflector lock clip
RMT Part #
66 12
Ref Part #
400874
Deflector lock clip
Screw for locking deflector
RMT Part #
66 12A
Ref Part #
400872
Screw for locking deflector
Deflector
RMT Part #
66 13
Ref Part #
400873
Deflector
Absorber (Metal)
RMT Part #
66 14
Ref Part #
400338
Absorber (Metal)
Rubber Shock
RMT Part #
66 15
Ref Part #
400337
Rubber Shock
Dowel Pin
RMT Part #
66 16
Ref Part #
D0007-006036
Dowel Pin
Distributor Plate (Upper)
RMT Part #
66 17
Ref Part #
400339
Distributor Plate (Upper)
Valve - Metal Plate (Pallet)
RMT Part #
66 18
Ref Part #
400329
Valve - Metal Plate (Pallet)
Distributor Box (Lower)
RMT Part #
66 19
Ref Part #
400328
Distributor Box (Lower)
Piston
RMT Part #
66 20
Ref Part #
400333
Piston
Cylinder
RMT Part #
66 21
Ref Part #
443822
Cylinder
Washer - Metal (Thick)
RMT Part #
66 22
Ref Part #
-
Washer - Metal (Thick)
Washer (Rubber)
RMT Part #
66 23
Ref Part #
-
Washer (Rubber)
Washer - Metal (Thin)
RMT Part #
66 24
Ref Part #
-
Washer - Metal (Thin)
Cylinder Rubber Washer
RMT Part #
66 24A
Ref Part #
400335
Cylinder Rubber Washer
Retainer
RMT Part #
66 25
Ref Part #
400334
Retainer
Handle Complete (1 - 11A)
RMT Part #
66 A
Ref Part #
470001
Handle Complete (1 - 11A)
Valve Complete (14 - 19)
RMT Part #
66 B
Ref Part #
-
Valve Complete (14 - 19)
Washer Set (3 Article Set) (22-24)
RMT Part #
66 C
Ref Part #
-
Washer Set (3 Article Set) (22-24)
