Convertible Underground Production Wagon Drill

Wagon Drill

High-performance wagon drill for mining and quarry operations, available in Top Hammer and DTH variants for precise drilling up to 40 meters depth.

Description

Rama Mining Tools Wagon Drill is a versatile and cost-effective drilling machine used in opencast mines, quarries, and underground operations. It is available in two variants—Top Hammer (TH) and DTH Hammer—covering hole diameters from 45 mm to 130 mm and depths up to 40 meters. The machine features a pneumatic-powered system with easy maneuverability and skid steering for efficient positioning.

It comes with adjustable feed beam lengths and can be quickly converted between TH and DTH versions. Designed for production drilling, grouting, and anchoring, it ensures high performance and reliability. Its compact design allows easy shifting from one drilling position to another.

Application 1. Open-cast mining drilling 2. Sandstone & limestone slotting 3. Underground mining operations 4. Blast hole drilling projects

Usage • Production drilling in mines • Drilling in confined spaces • Quarry and excavation work • Construction and infrastructure drilling

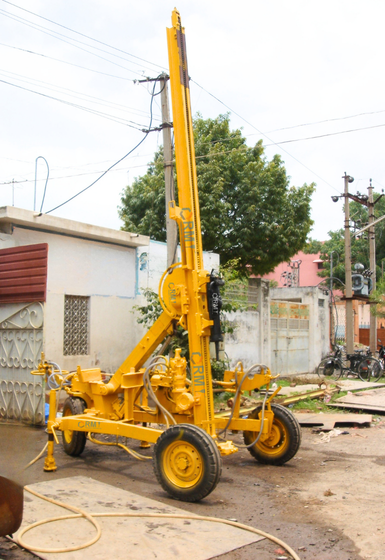

Long Hole Drilling Machine - Front View

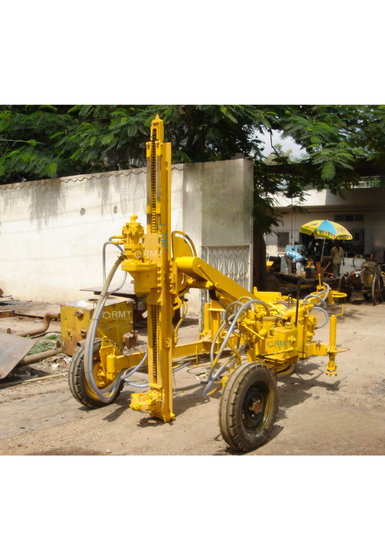

Long Hole Drilling Machine - Side View

Versions

Select the right model as per working space, application, and mine condition.

Version 01

RMT 25 TH

Drilling up to 20 - 40 meter depth with hole dia of 45 - 75 mm. (With RMT 120F | BBC 120F Pneumatic Drifter)

RMT 25 DTH

Drilling depth of 40 meters with hole dia of 85 to 130 mm. A vertically mounted pneumatic hammer drill and percussive-type rock drill supported on a three-wheeled wagon.

Features

Main features of the machine for underground drilling operations.

Available in Top Hammer and DTH variants for versatile drilling.
Drilling depth up to 40 meters with 48–130 mm hole diameter.
Pneumatic powered system with high-performance drifter.
Skid steering for easy movement in confined spaces.
Convertible from TH to DTH with conversion kit.
Hydraulic hand pump and mechanical jack for stability.
Adjustable feed beam for flexible drilling operations.
Compact wagon design for easy shifting between holes.
Pneumatic power steering with tow bar for smooth tramming
Stable drilling setup with jack bars for precise and efficient performance

Specifications

Parameter	RMT 25 TH	RMT 25 DTH
Version	Down the Hole Hammer (DTH)	Top Hammer (TH)
Drilling Depth	Up to 40 meters	20 - 40 meters
Hole Diamater	85 - 130 mm	45 - 75 mm
Drill Steel / Tube	70/76 mm Drill Tube	R32/R38/T38 Drill Steel
Air Consumption	450 cfm at 10.5 bar	400 cfm at 7 bar
