Powerful Precision Drifter

Pneumatic Drifter – High-Performance Drilling Solution

Efficient, durable, and versatile drifters for underground and surface mining applications

Description

Rama Mining Tools offers high-quality Pneumatic Drifters in two variants – RMT 120F and RMT 120FZ, designed for reliable and efficient drilling performance. These drifters are compatible with multiple rigs such as Simba Junior, Crawler Drills, and Wagon Drills, ensuring versatile usage across mining operations.

Equipped with a rifle-bar actuated rotation motor and 8-pawl system, they provide smooth and controlled drilling in both directions. A key advantage is their easy conversion from water flushing to air flushing, enhancing flexibility on-site. Built for durability and low maintenance, these drifters are ideal for underground mining, surface drilling, tunneling, and construction applications.

Application 1. Surface and underground drilling applications 2. Long hole and bench drilling operations 3. Grouting hole drilling in mining and construction 4. Ring and face drilling in tunnels and mines 5. Furnace top hole drilling operations

Usage • Precision drilling with remote-controlled operation • Flexible use with multiple shank adapters • Easy mounting on various drilling rigs • Quick dismantling for service and inspection • Efficient performance in continuous drilling tasks

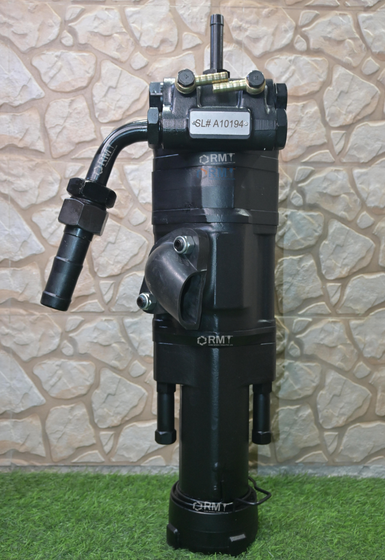

RMT 120F - Front View

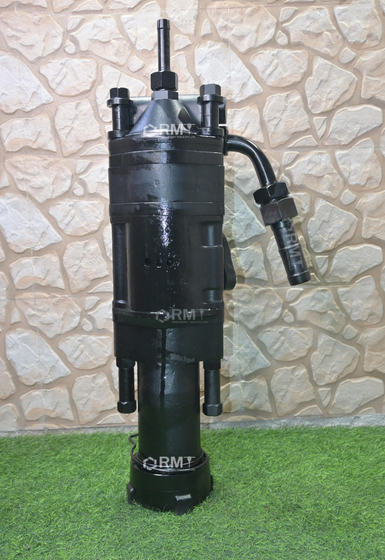

RMT 120F - back View

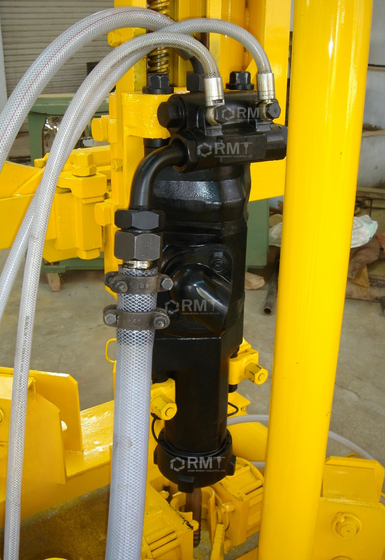

Pneumatic Drifter - Working View

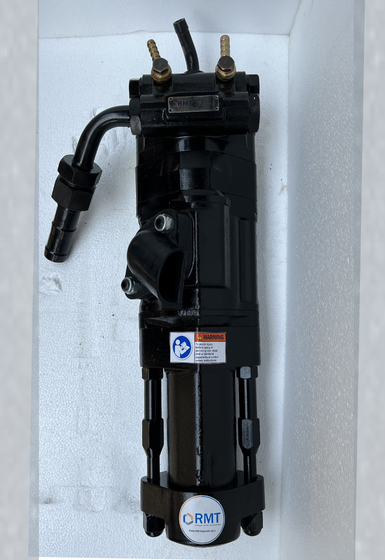

RMT 120FZ - Front View

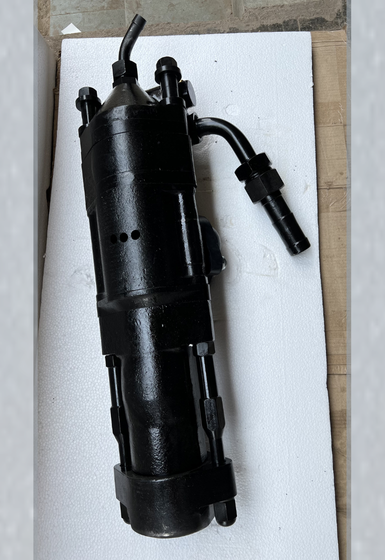

RMT 120FZ - Back View

Versions

Select the right model as per working space, application, and mine condition.

Version 01

Drifter - 120F

RMT 120F Pneumatic Drifter is a versatile, high-performance drilling tool with rifle-bar rotation and easy water-to-air flushing conversion for underground and surface use.

Drifter - 120FZ

RMT 120FZ Pneumatic Drifter is a robust underground-focused drilling tool with rifle-bar rotation and easy water-to-air flushing conversion for efficient mining and tunneling operations.

Features

Main features of the machine for underground drilling operations.

High-performance rifle-bar rotation system with 8-pawl mechanism.
Easy conversion from water flushing to air flushing.
Remote-controlled operation with reversible rotation.
Compatible with multiple rigs like Simba, Crawler, and Wagon Drills.
Supports various shank adapters for flexible drilling needs.
Sectional assembly design for easy maintenance and servicing.
High impact power with efficient drilling performance.
Durable construction for underground and surface applications.

Specifications

Parameter	RMT 120F	RMT 120FZ
Weight	70 kg	71.5 kg
Hole Diameter Range	Up to 75 mm	Up to 89 mm
Maximum Hole Depth	Up to 25 m	Up to 30 m
Primary Use	Surface Drilling	Underground Drilling
Retainer Locking System	Standard	Modified
