Specification:-
Power : 5 HP
Air Pressure : 6-8 Bar
Air Consumption : 0-100 CFM

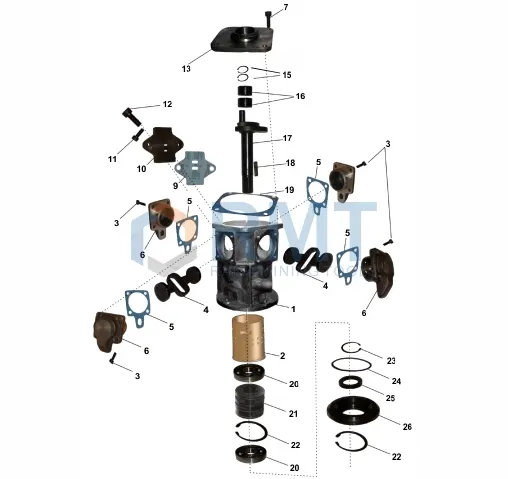

| Description | Ref. Part # | EV # |
| Piston Motor Complete - 17 Teeth (4450 0541 88) | 8973 1610 06 | |

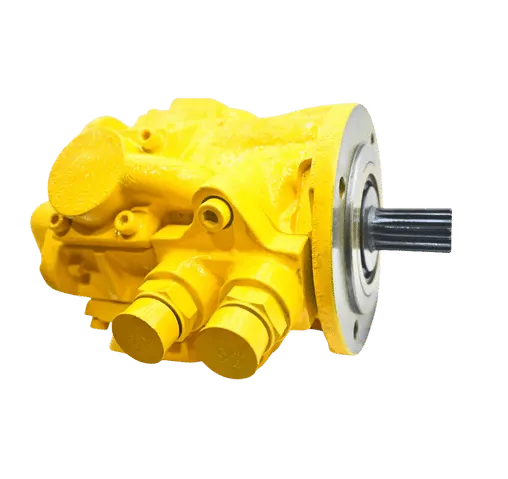

| Piston Motor Complete - 11 Teeth (4450 0776 84) | 8973 1610 14 | - |
| Piston Motor Complete - 9 Teeth | 4450 0776 80 | - |
| Crankcase Feed Rotation & Traction (Modified)* | - | 1 |
| Main Valve Liner | 4450 0712 00 | 2 |
| Screw (Modified)* | 0211 1324 00 (M) | 3 |
| Double Piston | 4350 2222 00 | 4 |
| Gasket | 4450 0544 00 | 5 |
| Cylinder | 4450 0543 00 | 6 |
| Screw (Modified)* | 0211 1324 00 (M) | 7 |
| Gasket | 4450 0546 00 | 9 |
| Distributor Plate | 4450 0752 00 | 10 |
| Spring Washer | 0333 2130 00 | 11 |
| Screw (Modified)* | 0211 1361 00 (M) | 12 |
| Cover | 4350 2223 00 | 13 |
| Circlip 16 mm | - | 15 |
| Needle Bearing (Modified)* | 5053 0108 00 (M) | 16 |
| Crankshaft Feed Motor - 17 Teeth (Modified)* | 9718 2600 00 (M) | 17 |
| Crankshaft Rotation - 11 Teeth (Modified)* | 9718 5027 00 (M) | 17A |
| Crankshaft For Motor BBE 57 - 9 Teeth (Modified)* | 4350 2009 00 (M) | 17B |
| Key | 0337 2592 00 | 18 |
| Gasket | 4450 0550 00 | 19 |
| Ball Bearing | 0502 3218 00 | 20 |
| Main Valve | 4450 0547 00 | 21 |
| Circlip (Internal) | 0333 2157 00 | 22 |
| Circlip (External) | 0335 1132 00 | 23 |
| O-Ring | 0663 6137 00 | 24 |
| Seal Ring | 0666 2261 00 | 25 |
| Seal Ring Retainer | 4450 0551 00 | 26 |
